Mechan Coblation Wand Radiofrequency Plasma Cutting Electrode For
Lumbar Puncture
01 Detailed Parameters
| Model No. | PLA302 |
| Probe Shape Angle | Probe angle 0°/15°/30° |
| Qty. of pins | Cone |
| Working length | 71mm/136mm/86mm |
| Outer diameter | 0.9mm/1.5mm |
| Usage | Tendinous disease |
Working Temperature: 40-70 Celsius, little thermal damage to surrounding tissues.
With ABLATION and PLACOAG two modes for option.
Online technical guide is always provided.
02 Indications
Widely used for knee, shoulder, hip, wrist, ankle and elbow joints.
Resection, lysis, plasty, debridement and ablation can be applied
on meniscus, soft tissue, ligament, synovial membrane, tendon
glenoid labrum, etc. For example, complete or partial resection of
meniscus, meniscus finishing and repairing, ligament release or
tightening, pathological synovial removal, intra-articular residue
clearance, agedness osteoarthritis treatment, wound restoring, bone
infection treatment, etc.
03 Unique Characteristics
- Low-temperature resection: less than 70°c
- Fibrinogen aggregation hemostasis (clear surgical field and almost
no bleeding)
- For larger blood vessel: with specialized hemostasis function
- Variable-angle joint probe, capable of resection and hemostasis
within small articular cavity
- Reduce hydrops within articular cavity, almost no soild particles
residue
- Better and faster recovery of joint function
- Low-temperature ablation: less than 50°c
- For minimal blood vessel: simultaneously resection and hemostasis
- Joint probe with suction tube is capable of suction while resection
- Minimize surgery time
- Little damage to neighboring tissue, blood vessels and nerves ,
light pain after surgery
- Undertake functions of the power system to a larger extent

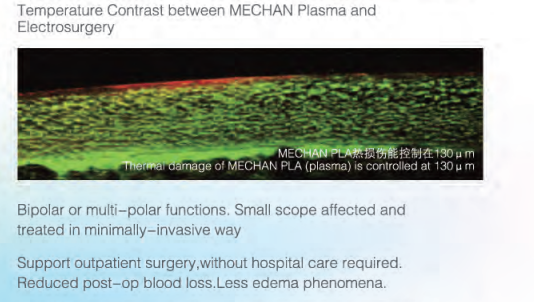

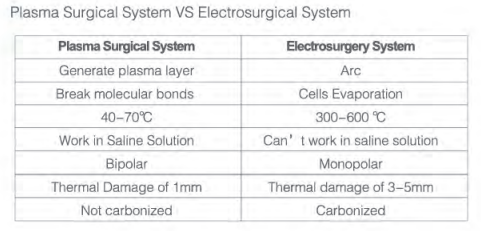

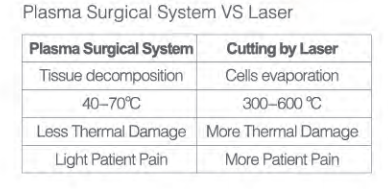

04 Thermal Damage Contrast with Laser and Electrosurgical
While most radiofrequency-based surgical products, such as lasers
and electrosurgical devices, use imprecise heat-driven processes to
remove or cut tissue, our Mechan Plasma creates a controlled,
stable plasma field to precisely remove tissue at a low relative
temperature, resulting in minimal thermal damage to surrounding
soft tissues.

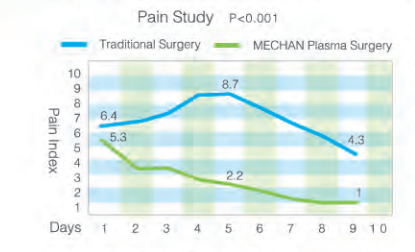

05 Pain Contrast with Traditional Surgery

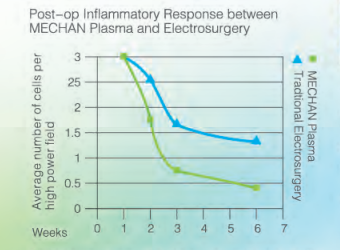

06 Post-op Inflammatory Contrast with Traditional Surgery
* Integrated saline and bipolar energy
Plasma is formed by creating a high density energy field within an
electrical conductive fluid, such as saline. A key to sustaining a
stable plasma layer is our patented saline delivery system. Without
integrated saline, plasma must be formed using the body’s
interstitial fluid, which dissipates quickly once energized.Our
Mechan Plasma Technology uses bipolar energy to help control the
amount of energy and heat delivered to the surrounding tissue.
07 Product Detail Picture
* Controlled, continuous plasma
By combining bipolar energy with continuous saline delivery, our
COBLATION technology devices are able to create a stable plasma
layer of only 100μm-200μm thick around the active electrode. This
allows for the precise excision of tissue while minimizing the heat
that is transferred to the patient and ensures a controlled amount
of plasma throughout the entire procedure.
08 Packaging & Delivery
Selling Units: Single item
Single package size: 44X17X2 cm
Single gross weight: 0.200 kg
Package Type: by carton
09 Certifications
10 FAQ
Q1. How about your delivery time?
A: Generally, it will take 1 to 4 weeks after receiving your
advance payment. The specific delivery time depends on the items
and the quantity of your order.
Q2. What is your sample policy?
A: We can supply the sample if we have ready products in stock, but
the customers have to pay the sample cost and the courier cost.
Q3. How do you help your distributor sell products?
A: Firstly, We have almost all the necessary certifications to help our
distributor to sell Mechan products.
Secondly, Mechan helps distributors by attending medical fairs in
domestic and overseas, such as CMEF every year in China, MEDICA,
FIME, Arab Health, etc. and academic conferences in different
countries.Mechan helps distributors by attending medical fairs in
domestic and overseas, such as CMEF every year in China, MEDICA,
FIME, Arab Health, etc. and academic conferences in different
countries.
Thirdly, online technical guide is always provided.
Q4: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our
customers benefit ; We respect every customer as our friend and we
sincerely do business and make friends with them, no matter where
they come from.
